Container Types

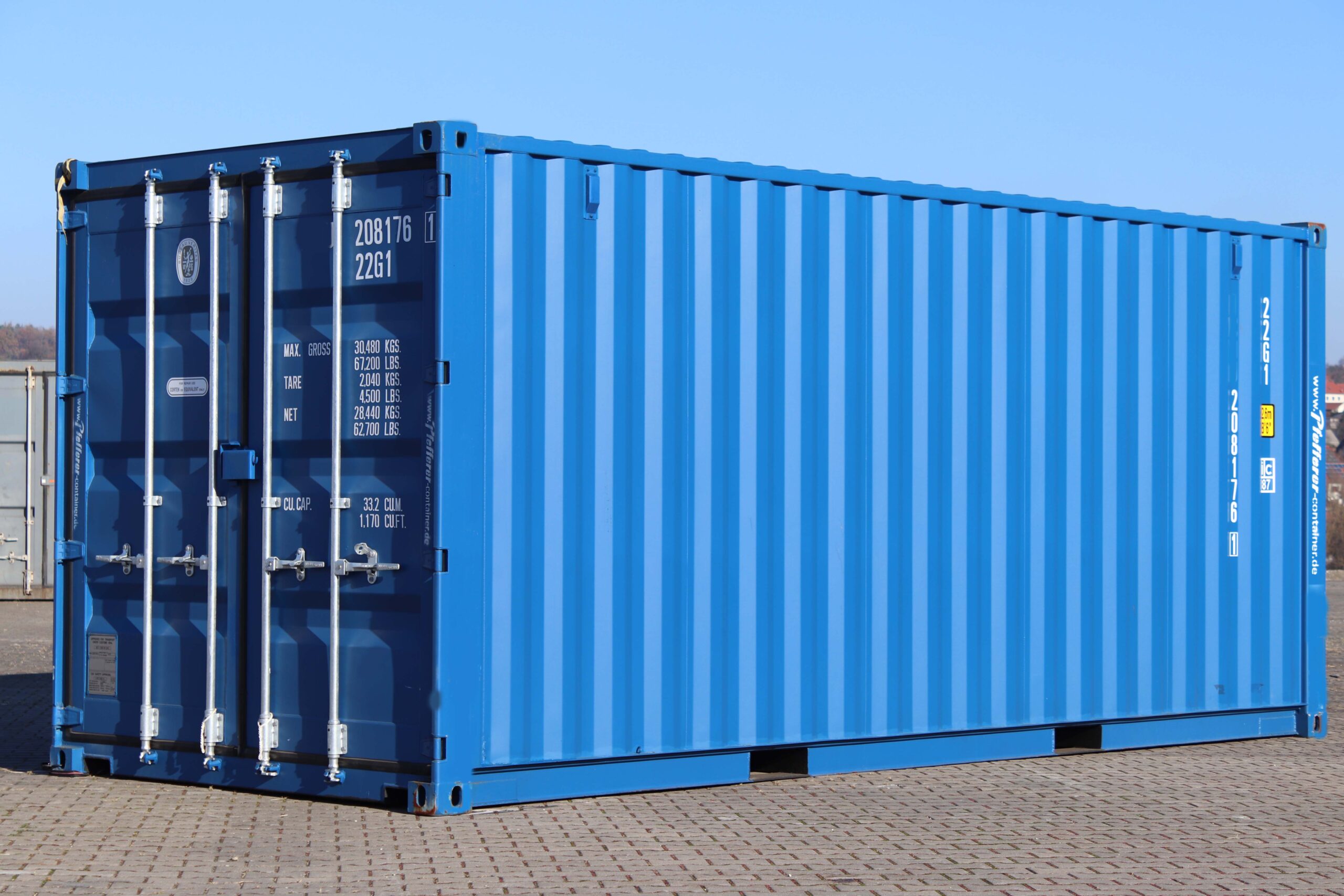

20’DC
External
L: 6,058mm
W: 2,438mm
H: 2,591mm
Internal
L: 5,898mm
W: 2,352mm
H: 2,393mm
Maximum Gross Weight
30,480kg
Tare Weight
2,220kg
Maximum Payload
26,790kg
Cube Capacity
33,0 m`

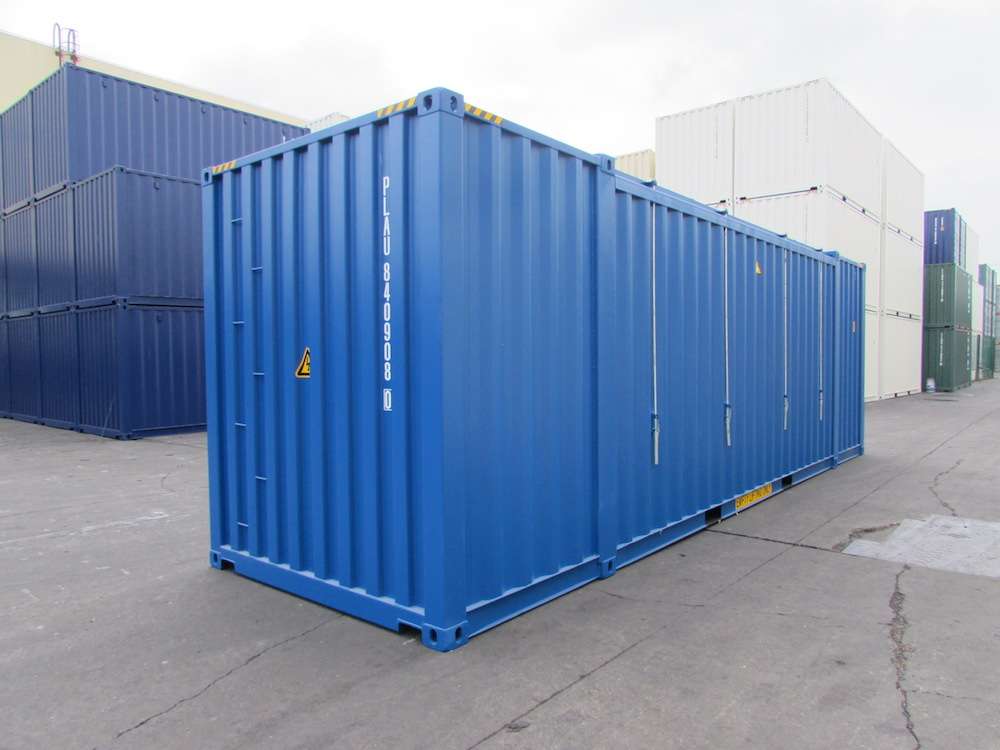

40’DC
External
L: 12,192mm
W: 2,438mm
H: 2,591mm
Internal
L: 12,032mm
W: 2,352mm
H: 2,393mm
Maximum Gross Weight
30,480kg
Tare Weight
3,690kg
Maximum Payload
26,790kg
Cube Capacity
67,3 m`

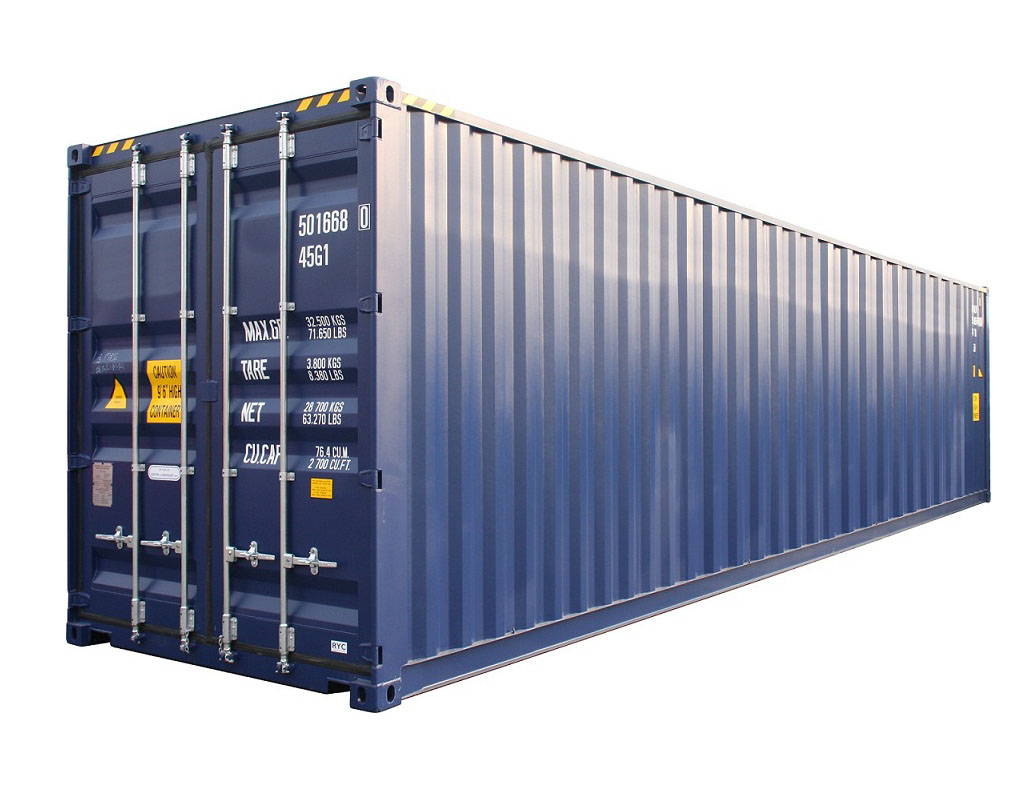

40’HQ
External
L: 12,192mm
W: 2,438mm
H: 2,896mm
Internal
L: 12,032mm
W: 2,352mm
H: 2,698mm
Maximum Gross Weight
30,480kg
Tare Weight
3,840kg
Maximum Payload
26,640kg
Cube Capacity
76,0 m`

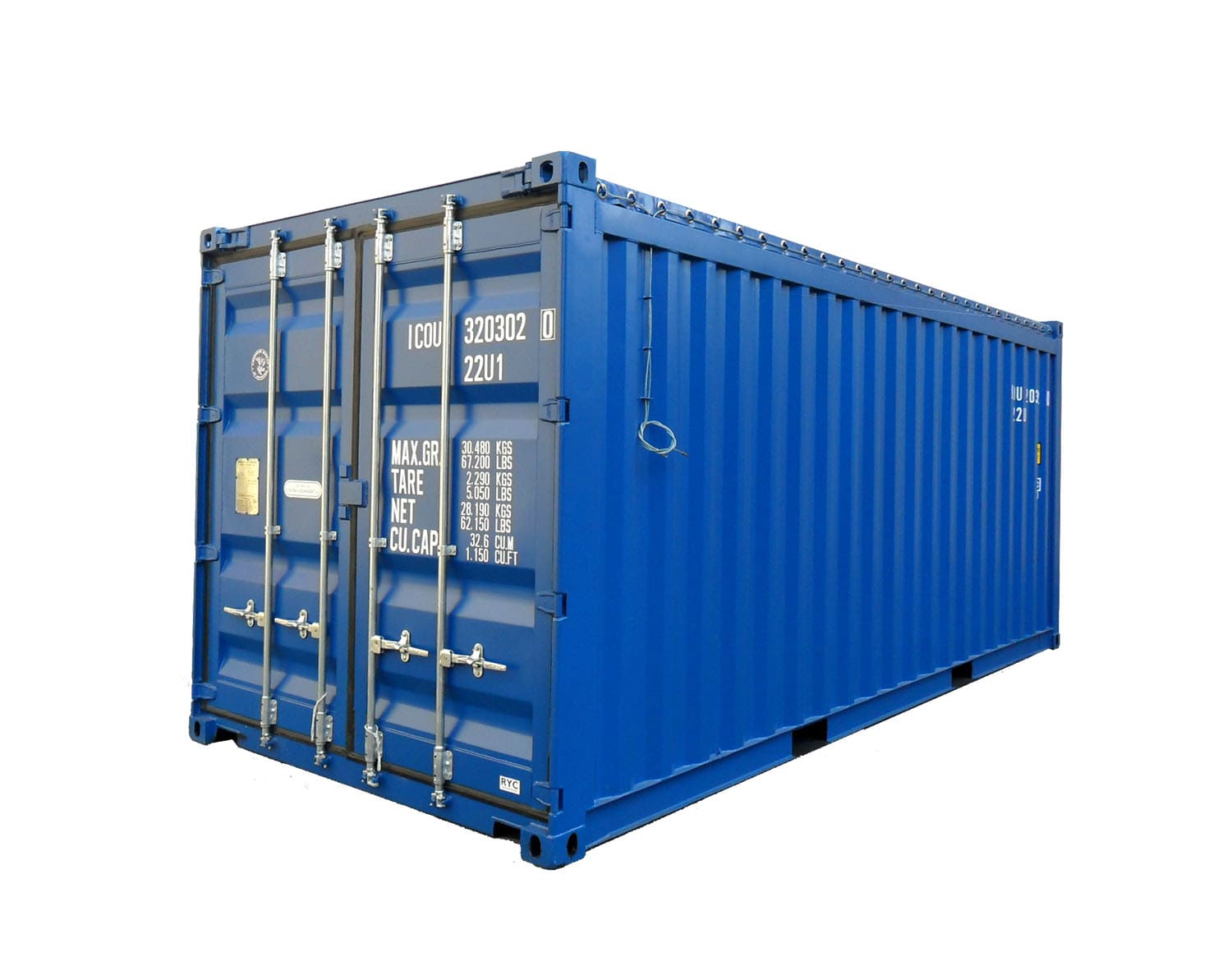

20`OT
External
L: 6,058mm
W: 2,438mm
H: 2,591mm
Internal
L: 5,898mm
W: 2,352mm
H: 2,348mm
Maximum Gross Weight
30,480kg
Tare Weight
2,350kg
Maximum Payload
28,130kg
Cube Capacity
31,6 m`

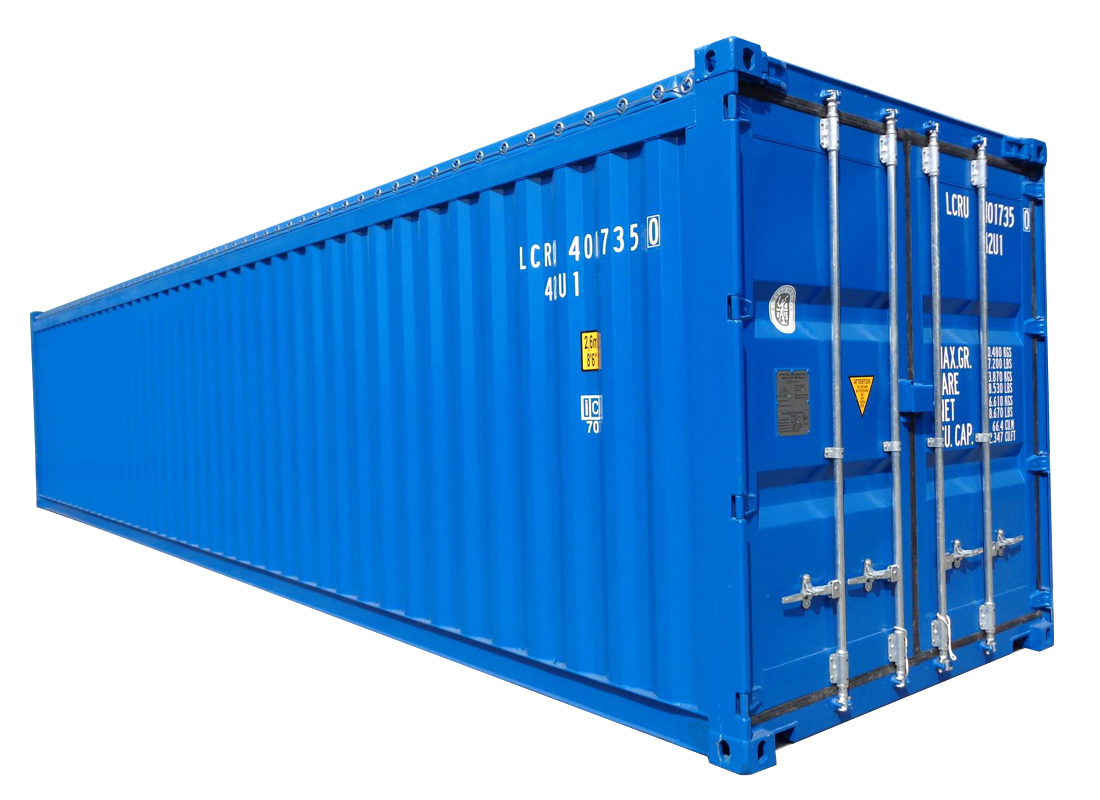

40’OT
External
L: 12,192mm
W: 2,438mm
H: 2,591mm
Internal
L: 12,032mm
W: 2,352mm
H: 2,368mm
Maximum Gross Weight
30,480kg
Tare Weight
3,840kg
Maximum Payload
26,640kg
Cube Capacity
64,0 m`

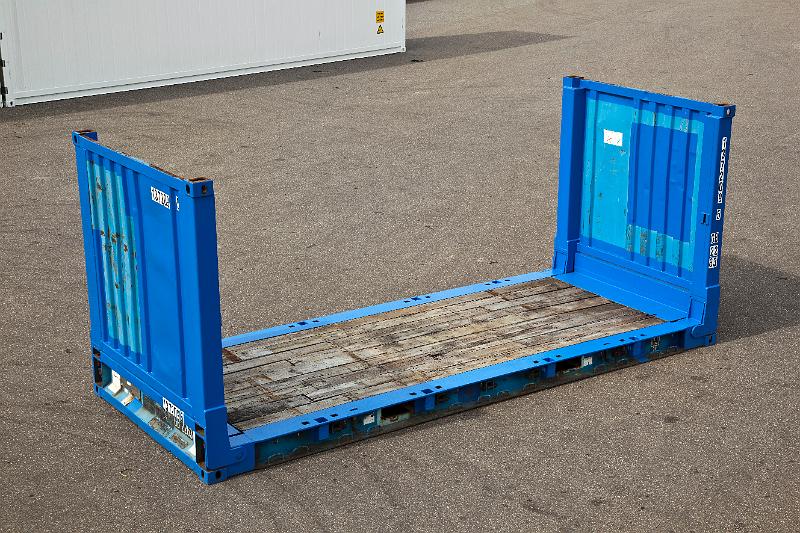

20’FR
External
L: 6,058mm
W: 2,438mm
H: 2,591mm
Internal
L: 5,662mm
W: 2,438mm
H: 2,327mm
Maximum Gross Weight
34,000kg
Tare Weight
2,740kg
Maximum Payload
31,260kg

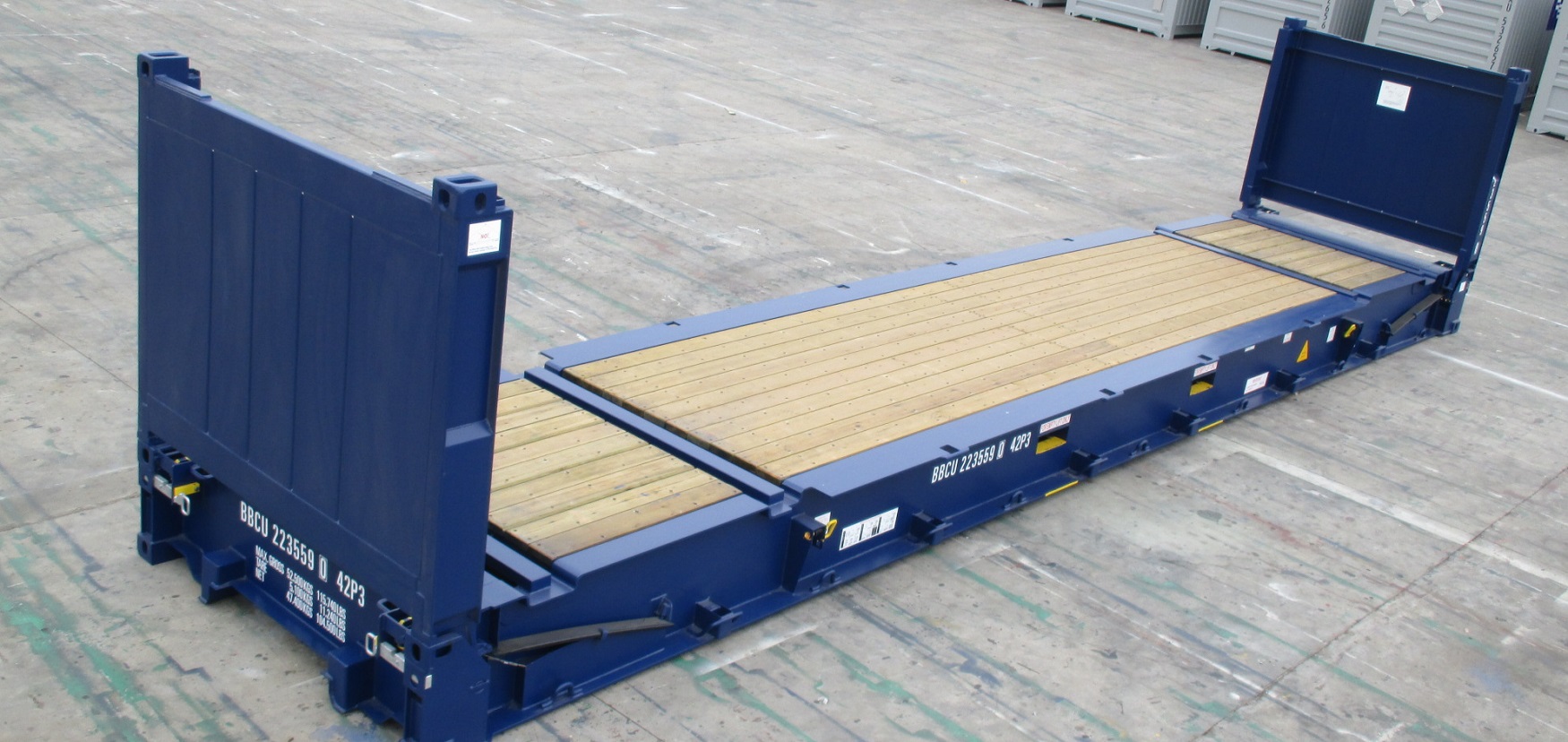

40’FR
External
L: 12,192mm
W: 2,438mm
H: 2,591mm
Internal
L: 12,080mm
W: 2,438mm
H: 2,103mm
Maximum Gross Weight
45,000kg
Tare Weight
4,795kg
Maximum Payload
40,205kg

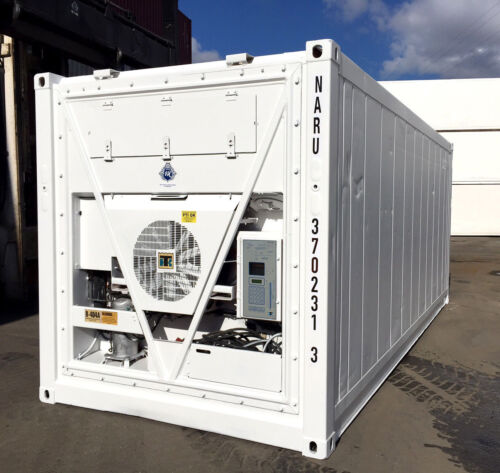

20’RF
External
L: 6,058mm
W: 2,438mm
H: 2,591mm
Internal
L: 5,048mm
W: 2,290mm
H: 2,271mm
Maximum Gross Weight
27,000kg
Tare Weight
3,480kg
Maximum Payload
23,520kg
Cube Capacity
27,5 m`

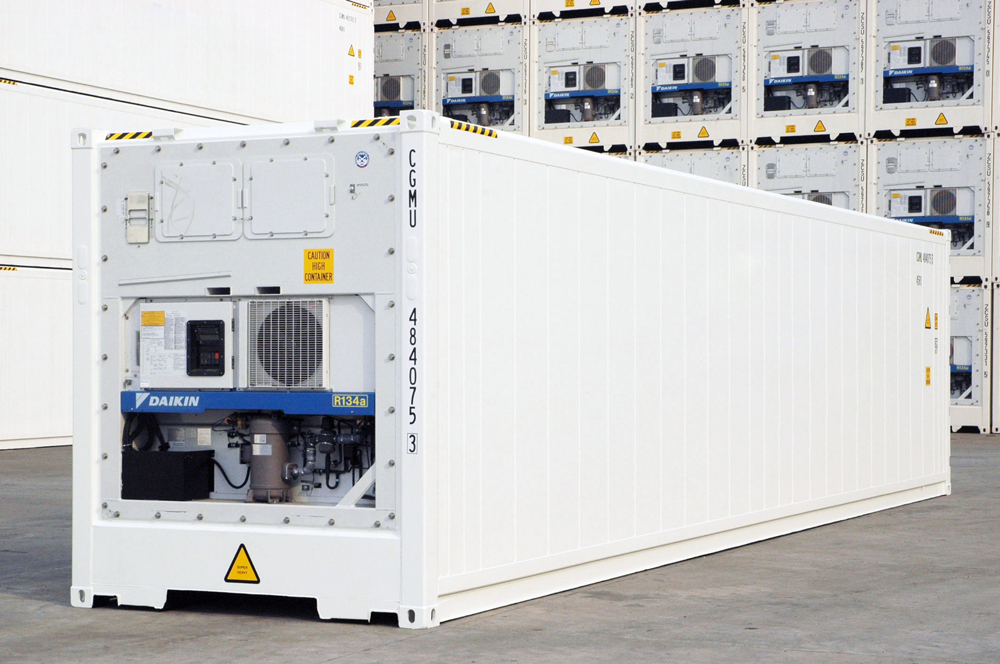

40’RF
External
L: 12,192mm
W: 2,438mm
H: 2,591mm
Internal
L: 11,584mm
W: 2,252mm
H: 2,252mm
Maximum Gross Weight
30,480kg
Tare Weight
5,300kg
Maximum Payload
25,180kg
Cube Capacity
54,9 m`
